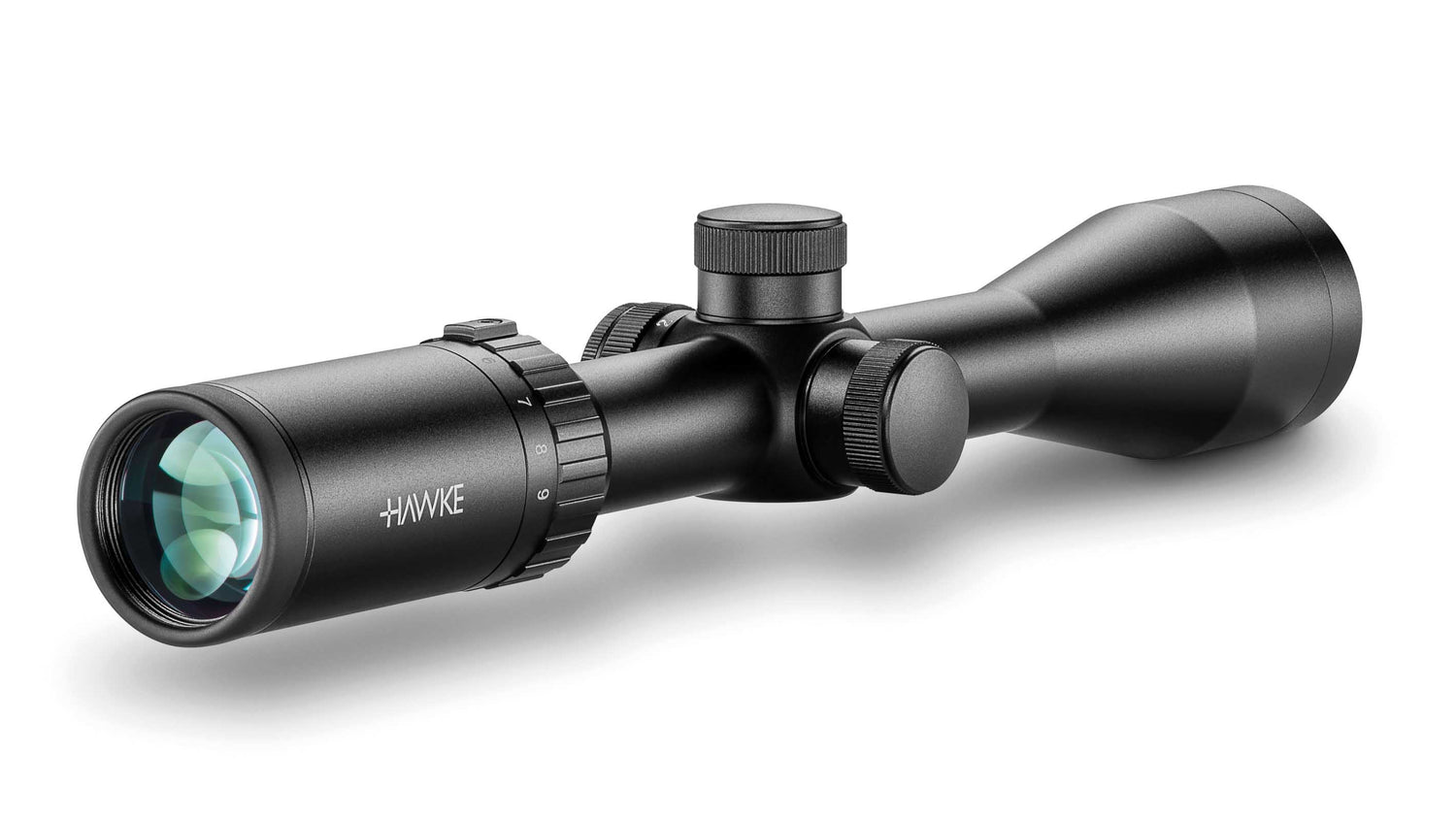

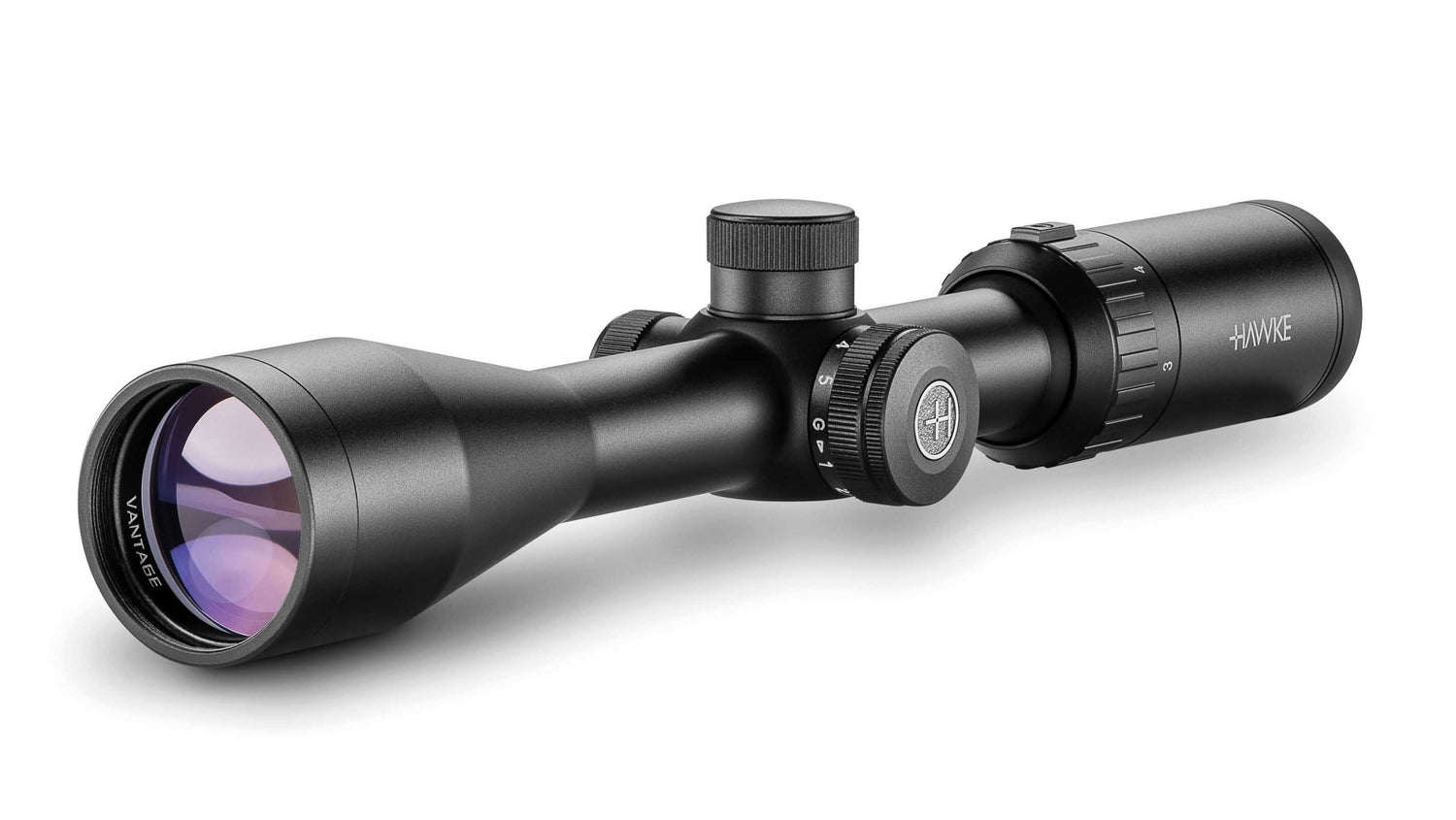

Hawke Vantage IR 3-9×40 Mil Dot IR Reticle Riflescope
Hawke Vantage IR 3-9×40 Mil Dot IR Reticle Riflescope is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Description
Description
A versatile mid-range riflescope ideal for hunting and precision target work, combining a 3×–9× magnification range with a 40 mm objective lens and an illuminated Mil Dot reticle. Built with durable construction and dependable optics, it provides clear views and intuitive aiming in varied lighting conditions.
⭐ Key Features
-
3×–9× Variable Magnification: Flexible power for close to extended engagements.
-
40 mm Objective Lens: Offers strong light gathering and bright images, especially in low light.
-
Illuminated Mil Dot Reticle: Classic mil-based aiming pattern with selectable red and green illumination across five brightness levels, aiding aiming in differing light conditions.
-
Adjustable Parallax / Side Focus (AO): Helps maintain focus and sharp reticle alignment from very short distances out to infinity (approx. 10 yd / 9 m to ∞).
-
Rugged Construction: One-piece 1″ mono-tube aluminum chassis that is nitrogen-purged and O-ring sealed for waterproof, fog-proof, and shock-resistant performance.
-
Fully Multi-Coated Optics: 11-layer anti-reflection coatings for improved light transmission and contrast across all magnifications.
-
Low-Profile Turrets: Protective, capped 1/4 MOA adjustment turrets provide tactile windage and elevation corrections.
-
Fast-Focus Eyepiece & High-Torque Zoom Ring: Quick reticle focus and smooth magnification control without unwanted shifts under recoil.
📊 Technical Specifications
| Specification | Details |
|---|---|
| Magnification | 3× – 9× |
| Objective Lens Diameter | 40 mm |
| Reticle Type | Mil Dot (Second Focal Plane), illuminated (red/green) |
| Reticle Illumination Levels | 5 brightness levels in red and green |
| Parallax / Focus | Adjustable Objective (approx. 10 yd / 9 m to ∞) |
| Field of View | ~39–12.7 ft @ 100 yd (~13–4.2 m @ 100 m) |
| Exit Pupil Diameter | ~13.3 – 4.4 mm |
| Eye Relief | ~89 mm / 3.5″ |
| Tube Diameter | 1″ / 25.4 mm |
| Adjustment Value | 1/4 MOA per click |
| Windage & Elevation Range | ~100 MOA each |
| Lens Coating | Fully multi-coated (11 layers) |
| Construction | Aluminum mono-tube, nitrogen-purged, waterproof & fog-proof |
| Length | ~322 mm / ~12.7″ |
| Weight | ~507 g / ~17.9 oz |
| Battery | CR2032 (for reticle illumination) |
📌 Usage & Performance
The Vantage IR 3-9×40 with Mil Dot IR reticle is designed for shooters who want balanced functionality and reliable optics at an accessible price point. The Mil Dot pattern supports simple hold-over and hold-under aiming without reticle scaling changes across magnifications, while the dual-color illumination helps maintain reticle visibility from bright daylight to low-light conditions.
With its robust sealed construction, this riflescope is suited to outdoor hunting and field use, resisting moisture and fogging even in changing weather conditions. The adjustable parallax improves focus clarity from close distances out to extended ranges, making it adaptable for general shooting, plinking, or hunting applications.
📦 What’s Typically Included
-
Hawke Vantage IR 3-9×40 Mil Dot IR Riflescope
-
Objective and ocular lens covers
-
CR2032 battery for illumination
-
Lens cleaning cloth
-
Documentation and warranty details
Mounting rings and bases are generally not included and must be purchased separately.
⚠️ Installation & Notes
-
Professional mounting and zeroing by a qualified technician is recommended to ensure optimal accuracy.
-
Always verify reticle configuration and illumination options before completing your purchase.
